Lexus lx nx apple carplay android auto upgrade

Lexus OEM 10.25" & 12.3" Monitor Wireless Apple CarPlay & Android Auto Upgrade Interface

This CarPlay/Android Auto/Mirrorlink Integration system is plug-and-play. It remains ALL the existing features and allows you to use the current Lexus Radio system with the following features:

Wireless/Wired Apple CarPlay for iPhone
Wireless/Wired Android Auto for Android phone

(Note Wireless Android auto is only available with:
1. Any Android smartphone running Android 11 or newer with 5GHz Wi-Fi built-in.
2. A Google phone
3. Some Samsung Galaxy phones)
Wireless Airplay for iPhone
Wired mirror link for Android phone(not wireless)
Front view Camera input for aftermarket front view camera
Rearview camera input for aftermarket rear view camera or 360 Panoramic camera system
HDMI input for digital TV, Apple TV, and other 720p HDMI devices
USB port for MP3 and MP4 multimedia playback

Tech spec:

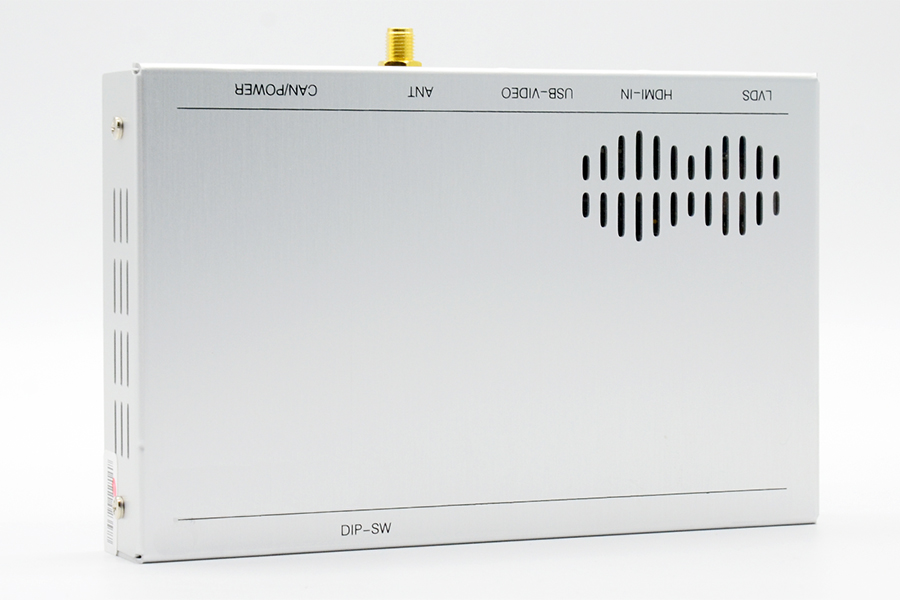

Built-in CarPlay, Android Auto, and screen mirroring 3 in 1 module

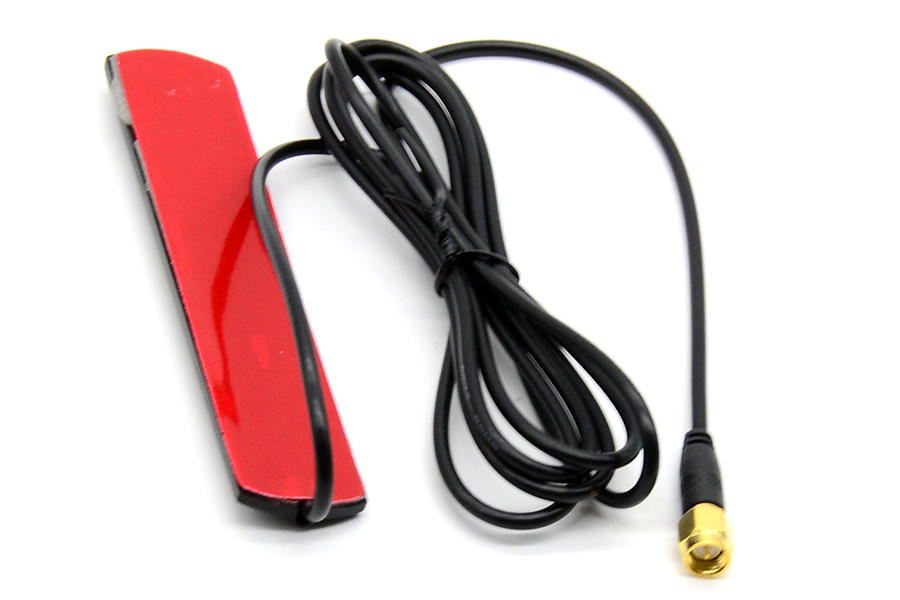

Built-in 5.8G and 2.4G WIFI for a stable connection
Built-in BT 4.0
Built-in DSP and adjustable volume for Navi, phone call, multimedia, and voice command system
Simple Menu setup instead of DIP for IPAS, PDC, and other settings
Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines),  OEM parking style
Adjustable parking guidelines position
Auto-compatible with CVBS camera(PAL, NTSC) and AHD camera

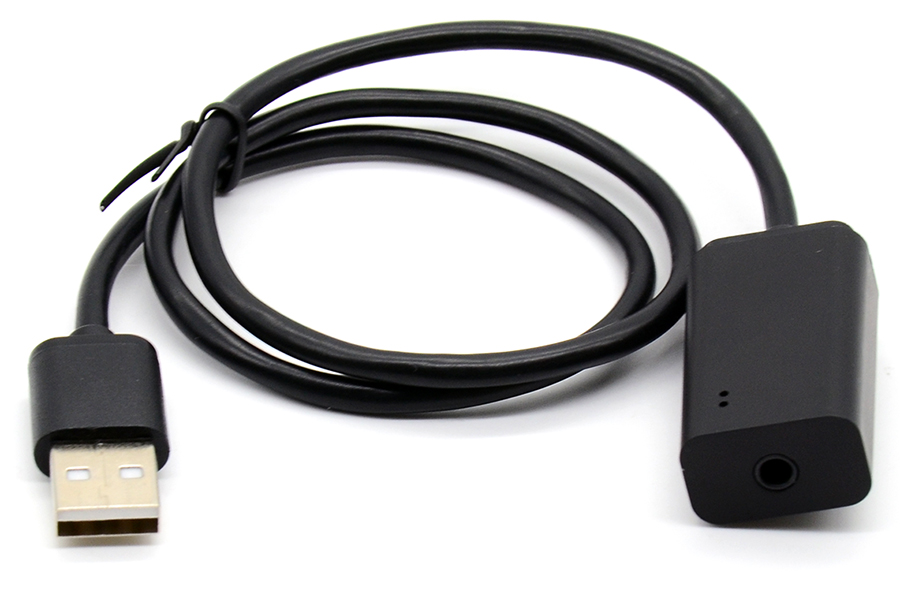

Support both OEM microphone  and add-on microphone
Support voice command control, OEM command system, and steering wheel control
Support both left and right drive mode
Support CarPlay icon and power on logo customization
SPHE8368 powerful BGA Chipset, DDR 256 MB, Flash 2G Mb, HD resolution 1920x1080

Compatible Vehicles:

CT 2014-
ES 2014-
GS 2012-
IS 2014-
LC 2014-
LS 2013-
LX 2014-
NX 2014-
RC 2014-
RX 2016-
UX 2014-

1. It is compatible with the car with an OEM 10.3(12.3) inch Monitor and Joystick controller/touchpad/knob controller with four buttons.
2. It is compatible with ES300H 2018-up if it DOES NOT HAVE an OEM Panoramic View Monitor.
3. It is incompatible with ES300H 2018-up if it has OEM Panoramic View Monitor.
4. It is incompatible with SC/LM/LF.

Wiring Diagram:
